Tapered Roller Bearings
- Minimum Order Quantity
- 100
- Unit of Measure
- Piece/Pieces
- Precision Rating
- P3 &P4
- Cage Material
- CRC
- Lubrication Type
- Grease
- Product Type
- Bearing
- Bearing Type
- Taper Roller Bearing
- Material
- Carbon Steel
- Number Of Rows
- Single Row
- Bore Size
- 55 mm
- Outside Diameter
- 100 Millimeter (mm)
- Limiting Speed
- 2400 RPM

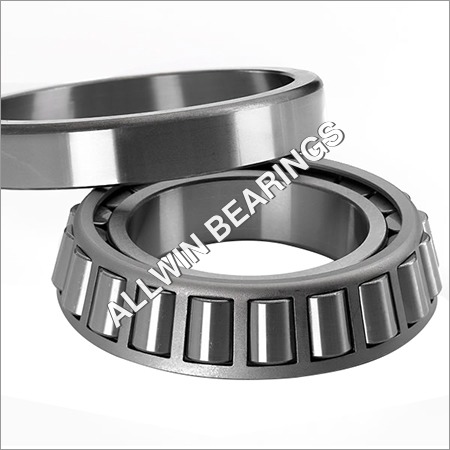

Tapered Roller Bearings
Allwin Bearing Industry is the prominent manufacturer, exporter and supplier of Tapered Roller Bearings. These bearings consist of inner ring, outer ring, tapered rollers, and cage. Its tapper angles allow the bearing to handle both thrust and radial loads. The major feature of these roller bearings is that the action line of the resulting load through the rollers forms an angle with the geometric axis of the bearing, that is why these Tapered Roller Bearings are particularly suitable for supporting significant combined loads (in radial and axial directions).
USEFUL FOR
- Wheel axle boxes for cars and industrial vehicles
- Gear boxes, Earth Moving vehicles
- Diesel Engines, Pumps, Compressors
- The outer ring can be mounted separately from the inner ring assembly
- Mounted clearance is adjustable, Higher Load ratings, Cost effective
OTHER INDUSTRIAL APPLICATION OF TAPER ROLLER BEARING :
- AGRICULTURE MACHINERY
- CONSTRUCTION EQUIPMENT
- EARTH MOVING OR MINING EQUIPMENT
- VARIOUS AXLE SYSTEMS
- GEAR BOX
- ENGINE MOTORS
- HELICOPTER TRANSMISSIONS
- SPEED REDUCTION TRANSMISSIONS
- GAS TURBINE ENGINES
- AIRCRAFT FUEL PUMP
- CONVEYANCE VEHICLES WHEEL
Advantages
- Improved bearing reliability and life
- Dimensional Stability, Durable Steel Cage
- Long Life Even In Contaminated Lubricant
- Dimensionally Interchangeable With Other Bearing Manufacturers
- Integrated seal can improve contamination exclusion to, or replace, external seals in certain applications
OUR MANUFACTURING PROCESS PHOTO :
SINGLE ROW TAPER ROLLER BEARING
| 30203 | 32020 | 33109 | 683 / 672 | 30204 | 32022 X | 33110 |
| 1988 / 1922 | 30205 | 32024 | 33111 | 2789 / 2729 | 30206 | 32026 |
| 33112 | 320 / 32 X | 30207 | 32206 | 33113 | 3490 / 3420 | 30208 |
| 32207 | 33114 | 3577 / 3525 | 30209 | 32208 | 33115 | 3579 R / 3525 |
| 30210 | 32209 | 33116 | 3984 / 3920 | 30211 | 32210 | 33117 |
| 3780 / 3720 | 30212 | 32211 | 33118 | 50 KW / 3720 | 30213 | 32212 |
| 33205 | 6379 / 6320 | 30214 | 32213 | 33206 | 02474 / 02420 | 30215 |
| 32213 UX1 | 33207 | 09067 / 091 95 | 30216 | 32214 | 33208 | 11590 / 11520 |
| 30217 | 32215 | 33209 | 11949 / 11910 | 30220 | 32216 | 33210 |
| 12649 / 1261 | 30221 | 32217 | 33211 | 15123 / 15245 | 30302 | 32218 |
| 33212 | 24780 / 24720 | 30304 | 32219 | 33213 | 25572 / 25520 | 30305 |
| 32220 | 33214 | 25577 / 25523 | 30306 | 32221 | 33215 | 25590 / 25520 |
| 30307 | 32222 | 33217 | 25877 / 25821 | 30308 | 32924 | 77213 L |
| 28580 / 28521 | 30309 | 32305 | 331933 (L 23206 D) | 28584 / 28521 | 30310 | 32306 |
| 331257 | 31 594 / 31520 | 30311 | 32307 | 524850 | 33275 / 33462 | 30312 |
| 32308 | 524851 | 37425 / 37625 | 30313 | 32309 | 528946 (32022 X) | 39581 / 39520 |
| 30312 D | 32310 | 728645 | 47487 / 47420 X | 30313 D | 32313 | 332 / 344 |
| 47890 / 47820 | 30314 D | 32314 | 387 / 382 | 48548 / 48510 | 31305 (21 mm) | 32314 A |
| 389 A / 382 | 55200 C / 55437 | 31305 (25mm) | 32314 BA | 414 / 418 | 67048 / 67010 | 31312 L |
| 32315 | 462 / 453 | 7221 2 / 72487 | 32008 | 33010 | 482 / 472 | 218248 / 21 821 0 |
| 32010 X | 33012 | 529 X / 522 | 2201 49 / 22011 0 | 32011 X | 33013 | 535 / 532 A |
| 41 5647 / 41 561 0 | 32012 XU | 33014 M | 539 / 532 X | 501 349 / 501310 | 32013 | 33015 |
| 565 / 562 | 518445 / 518410 | 32014 | 33018 | 566 / 563 | 528946 | 32015 |
| 33019 | 575 / 572 | 534565 / 528983 | 32016 X | 33020 | 580 / 572 | 603049 / 603011 |
| 32017 | 33021 | 593 / 592 A | 715334 / 715311 | 32018 | 33022 | 594 / 592 A |
| 715343 / 715311 | 32019 | 33024 | 598 A / 592 A | 71 6649 / 71 661 0 | | |
- Supply Ability
- 35000 Per Month
- Delivery Time
- 45 Days
- Sample Available
- Yes
- Sample Policy
- Free samples available with shipping and taxes paid by the buyer
- Packaging Details
- Poly bag, Separator,Individual Box,Outer Box, Palate Packing
- Main Export Market(s)
- Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
- Main Domestic Market
- All India
- Certifications
- ISO 9001:2008 TUV Rheinland Ccertified
